EFR (B1 and B2 frame)

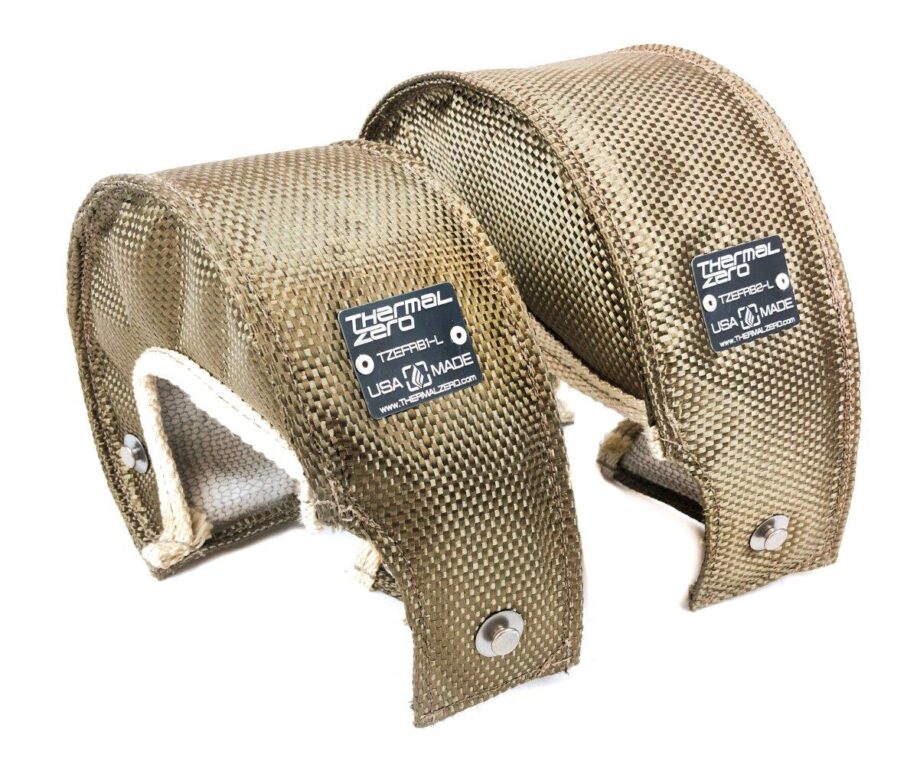

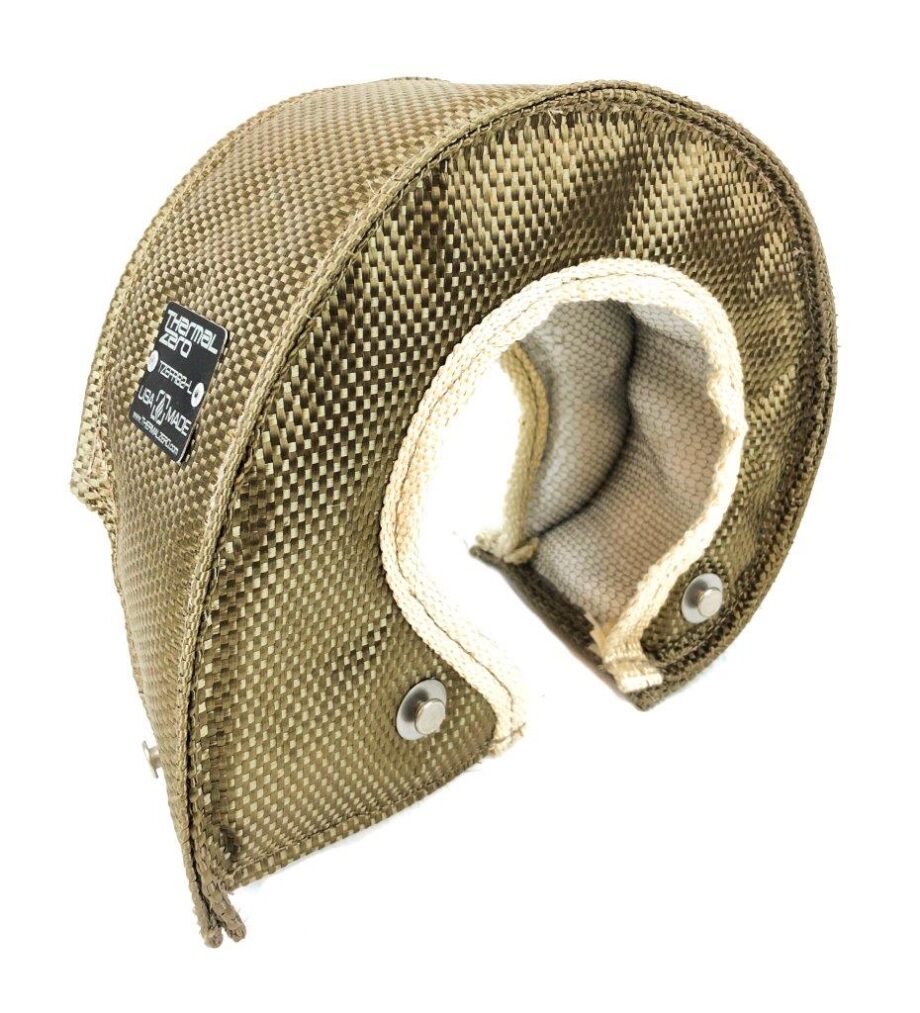

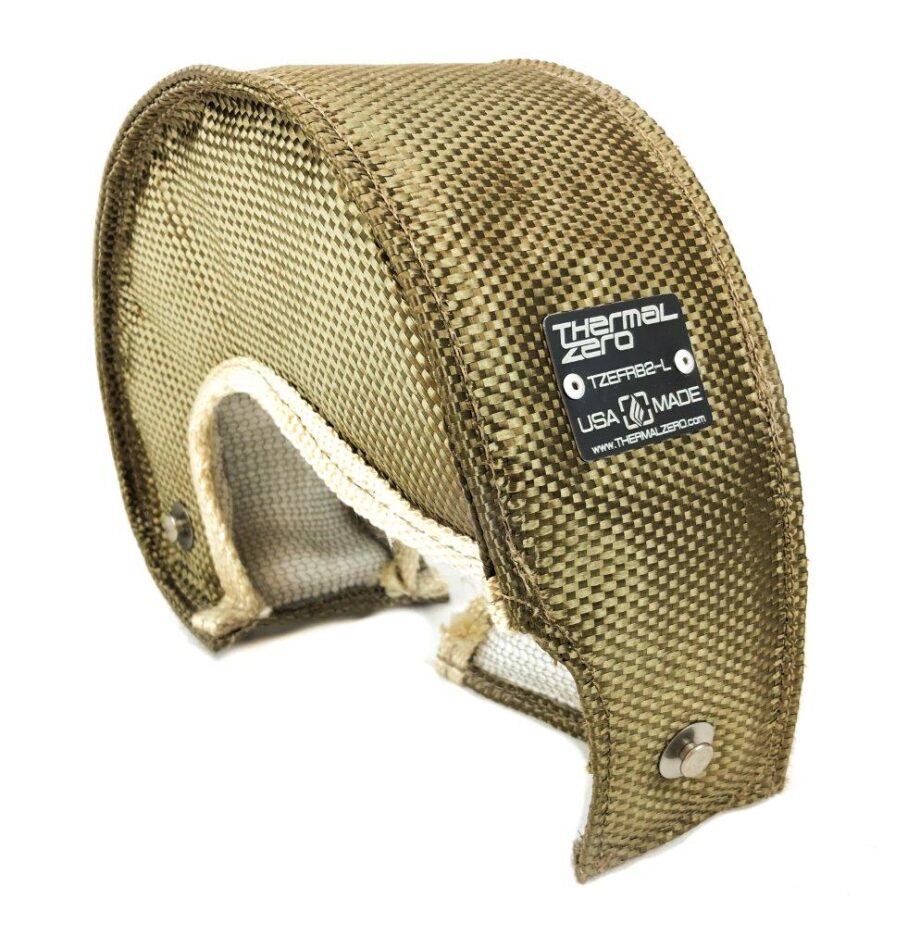

The EFR Turbo blankets were deigned specifically for the internally wastegated Borg Warner EFR turbochargers.  We specifically fit both the B1 and B2 frames with an individually patterned blanket that perfectly fits each size turbo frame. The blankets were also designed with close attention to the amount of material between the wastegate actuator arm so that it could move freely. The inner layer of the turbo blanket can handle over 2500 degrees Fahrenheit of direct heat. The blankets are made with high quality 1 inch thick 6 pound density ceramic insulation material. Our Lava line of blankets are different from our other turbo blankets in that they feature an outer jacketing that is made from an extremely heavy duty and high quality pulverized lava rock fiber instead of silica impregnated fiber. This lava material is actually different than what any other turbo blanket manufacturer uses in that it features an aluminum bonded layer on the inside of the blanket to further reflect the small amount of radiant heat which makes it through the ceramic layer. With this combination of materials we have seen up to 90% efficiency out of a Lava blanket on certain applications. Due to the durability and extremely high heat rating  (3000°F) of the Lava material; this blanket is ideal for applications where there is top mount turbo manifold or or heat sources which could come in contact with the outside of the blanket. Since vibration on a turbocharger is inevitable we have created a more durable design. Our turbo blankets feature a stainless steel knitted wire mesh inner layer that separates the insulation material from the turbocharger housing, greatly increasing durability. Installing a Thermal Zero Lava Turbo blanket will cut down up to 90% of direct heat emitted from your turbocharger.  In turn this will allow the turbo to spool faster and be more efficient. Not sure which EFR blanket you need?  Check the turbo models below for the suggested EFR B1 or B2 frame sizes. USE THERMAL ZERO PART NUMBER TZ32258-L FOR THE EXTERNALLY WASTEGATED 1.45 A/R EFR EXHAUST HOUSING Suggested B1 Turbocharger Models: EFR 7163 EFR 6758 EFR 6258 Suggested B2 Turbocharger Models: EFR 9174 EFR 7064 EFR 7670 EFR 8374 EFR 9180
